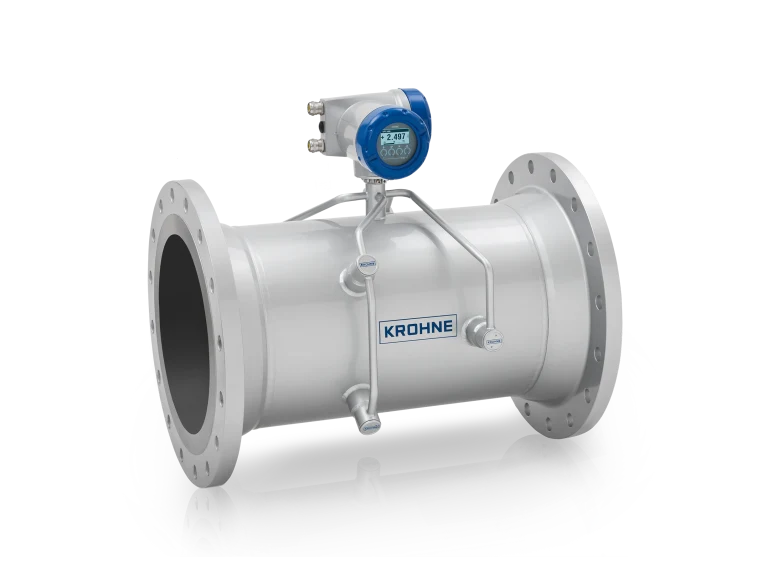

Krohne DN 200 Optisonic 3400F PN25 - v2 - 230VAC 4-20mA output 5m cabel
V088785
Optisonic 3400 er en 3-spors inline ultralydsflowmåler designet til såvel standard applikationer som mere krævende procesapplikationer med homogene, ikke-viskose væsker, samt viskøse væsker på op til over 1000 cSt. Flowmåleren er også et godt valg til applikationer med kryogene væsker (ned til -200°C), eller væsker med meget høje temperaturer (op til +250°C) eller høje tryk. OPTISONIC 3400 fåes i mange størrelser – fra DN25 op til DN3000. Benyttes til fjernvarme, vand, olie og LNG.
Få hjælp her - kontakt mig
Troels Sejer Johansen
| tsj@fagerberg.dk | |
| Tlf | +45 43290231 |
Produktbeskrivelse
VN624 OPTISONIC 3400F Flow sensor
E: Nominal diameter: DN 200 | 8"
4: Nominal pressure: PN 25 EN 1092-1
0: Ex-approval_S: Without
6: Design / Cable connection: Separate with aluminum connection box / M20 x 1.5
2: Converter: UFC 400 F-v2 ( field version )
0: Cable length: 5 meters
2: Calibration: 2 points with water
0: Housing: Standard - steel
0: none
1: Finish: KROHNE standard, grey
0: Protection class: IP 66 / 67
0: Construction requirements: Standard
0: QA / QC requirements: Standard
0: Custody Transfer: Without
0: Tagplate: Standard without, Tag information on foiled nameplate
3: Quick Start language: English
0: Process temperature: Standard, max. 180°C | 356°F
0: Extended application: Standard, max 100 cSt
0: none
0: none
0: none
0: Destination: Standard
0: none
0: none
-----
VN354 UFC400F Signal converter
K: Type: UFC 400 F-v2, die-cast aluminum field housing with local display
A: Power supply: 100 - 230 V AC ( 85 - 250 V AC, 50/60 Hz )
0: Ex-approval_C: Without - non Ex
6: Cable connection: 3 x M20 x 1,5
6: Instruction manual / Operating language: Without / english
0: Custody transfer: Without
0: Process diagnostics: Standard
1: Converter housing: Standard
0: none
1: Communication: Basic IO ( 4-20 mA / HART + pulse / frequency + status + control )
0: 1-st IO Module: Without, no module possible
0: 2-nd IO Module: Without, no module possible
0: Connection box: Standard for OPTISONIC 3000 sensor
0: Tagplate: Standard without, Tag information on foiled nameplate
3: Quick Start language: English
E: Nominal diameter: DN 200 | 8"
4: Nominal pressure: PN 25 EN 1092-1
0: Ex-approval_S: Without
6: Design / Cable connection: Separate with aluminum connection box / M20 x 1.5
2: Converter: UFC 400 F-v2 ( field version )
0: Cable length: 5 meters
2: Calibration: 2 points with water
0: Housing: Standard - steel
0: none
1: Finish: KROHNE standard, grey
0: Protection class: IP 66 / 67
0: Construction requirements: Standard
0: QA / QC requirements: Standard
0: Custody Transfer: Without
0: Tagplate: Standard without, Tag information on foiled nameplate
3: Quick Start language: English
0: Process temperature: Standard, max. 180°C | 356°F
0: Extended application: Standard, max 100 cSt
0: none
0: none
0: none
0: Destination: Standard
0: none
0: none
-----
VN354 UFC400F Signal converter
K: Type: UFC 400 F-v2, die-cast aluminum field housing with local display
A: Power supply: 100 - 230 V AC ( 85 - 250 V AC, 50/60 Hz )
0: Ex-approval_C: Without - non Ex
6: Cable connection: 3 x M20 x 1,5
6: Instruction manual / Operating language: Without / english
0: Custody transfer: Without
0: Process diagnostics: Standard
1: Converter housing: Standard
0: none
1: Communication: Basic IO ( 4-20 mA / HART + pulse / frequency + status + control )
0: 1-st IO Module: Without, no module possible
0: 2-nd IO Module: Without, no module possible
0: Connection box: Standard for OPTISONIC 3000 sensor
0: Tagplate: Standard without, Tag information on foiled nameplate
3: Quick Start language: English
Nettovægt
56.7
Tarifnummer
90261021
Fabrikkens varenummer
VN624E406230000100000300000000 + VN354KA0660010100003
