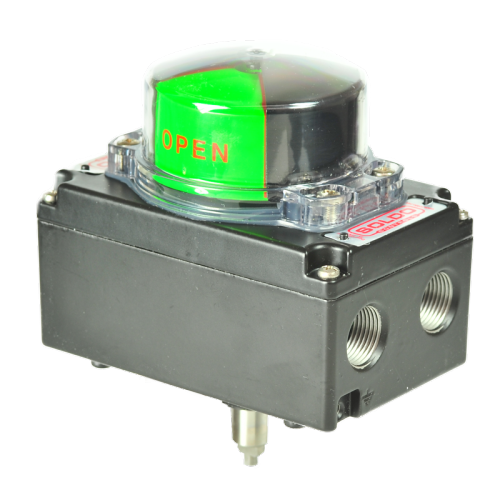

Rotork Soldo Switchbox
V083731
Kompakt meldeboks til industri og forsyningsfirmaer
Kan fås i aluminium og syrefast udgave
Fleksibelt beslag, således at samme boks passer til flere størrelser
Indkapsling IP65
ATEX godkendt, SIL 2 klassificering
Temperatur område: -20 – 80°C
Kan fås i aluminium og syrefast udgave
Fleksibelt beslag, således at samme boks passer til flere størrelser
Indkapsling IP65
ATEX godkendt, SIL 2 klassificering
Temperatur område: -20 – 80°C
Få hjælp her - kontakt mig
Johnny Strandmose
| jst@fagerberg.dk | |
| Tlf | +45 43290212 |
Produktbeskrivelse
SB01200‐10UA7A2 LimSw Box Soldo
stainless steel shaft ISO F05
mounting pattern and VDI/VDE3845
Qty 2 switches / sensors
SPDT electromechanical switches,
silver plated contacts, 5Amp @ 125/250 VAC
Resistive load, Screw terminal strips with pass
through solenoid valve poles,
Black RAL9005 polyester powder coating
Cable entries 2x1/2" NPT
UV resistant and V0 self extinguish polycarbonate
indicator dome 3D red and green flux
indicator, UL certified, cULus ordinary location
Nema 4 and 4X,
Temp range: ‐20°C to 80°C
Aluminum copper free heavy duty body shock
resistant and UV resistant polycarbonate cover
Bracket
LsbKitActAssyAcc Namur Namur 80x30_h20 SS 304
stainless steel shaft ISO F05
mounting pattern and VDI/VDE3845
Qty 2 switches / sensors
SPDT electromechanical switches,
silver plated contacts, 5Amp @ 125/250 VAC
Resistive load, Screw terminal strips with pass
through solenoid valve poles,
Black RAL9005 polyester powder coating
Cable entries 2x1/2" NPT
UV resistant and V0 self extinguish polycarbonate
indicator dome 3D red and green flux
indicator, UL certified, cULus ordinary location
Nema 4 and 4X,
Temp range: ‐20°C to 80°C
Aluminum copper free heavy duty body shock
resistant and UV resistant polycarbonate cover
Bracket
LsbKitActAssyAcc Namur Namur 80x30_h20 SS 304
Nettovægt
0.3
Tarifnummer
85365007
Fabrikkens varenummer
SOLDOSB01200-10UA7A2
Soldopub109-003-00-0620.pdf
15,8 MB
