SOLDO-SKC4200-20X23L3
V086686
Meldeboks til krævende miljø og udendørsinstallation
Kan fås i aluminium og syrefast udgave
Indkapsling IP68 10m/48hours
ATEX godkendt, SIL 3 klassificering
Temperatur område: -20 – 80°C (option -60 – 105°C)
Få hjælp her - kontakt mig
Johnny Strandmose
| jst@fagerberg.dk | |
| Tlf | +45 43290212 |
Produktbeskrivelse

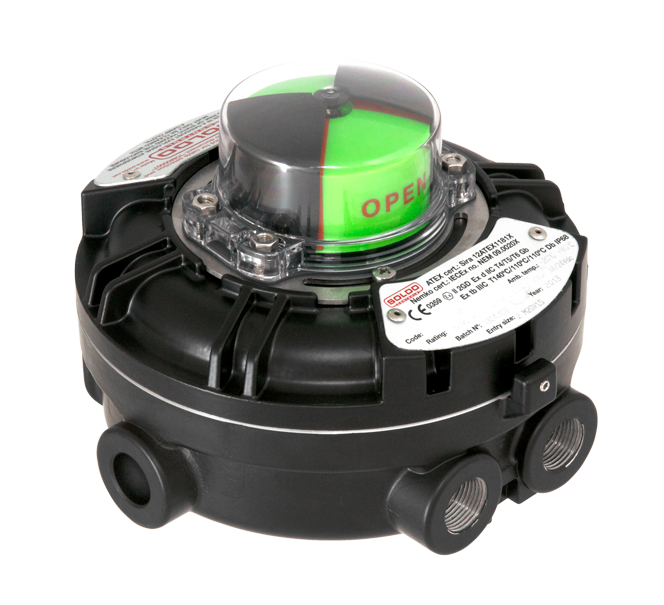

SK series limit switch box
stainless steel shaft ISO F05 VDI/VDE3845
Qty 2 switches / sensors, switch type Magnetic proximity hermetically
sealed reed SPDT, rating 0,25A@120Vac; 1A@24Vdc Max 25W resistive load
Screw terminal strips with pass through solenoid valve poles,
Black RAL9005 polyester powder coating,
SOLDO, 2xM20x1.5 cable entries
UV resistant and V0 self extinguish polycarbonate indicator dome 3D red and green flux indicator
ATEX and IECEx certified, Certification marking: Ex II 2GD Exd IIC, Protection level IP66/68,
Ambient temperature range: ‐40°C to 80°C
Aluminum heavy duty body and cover die‐cromated,
stainless steel shaft ISO F05 VDI/VDE3845
Qty 2 switches / sensors, switch type Magnetic proximity hermetically
sealed reed SPDT, rating 0,25A@120Vac; 1A@24Vdc Max 25W resistive load
Screw terminal strips with pass through solenoid valve poles,
Black RAL9005 polyester powder coating,
SOLDO, 2xM20x1.5 cable entries
UV resistant and V0 self extinguish polycarbonate indicator dome 3D red and green flux indicator
ATEX and IECEx certified, Certification marking: Ex II 2GD Exd IIC, Protection level IP66/68,
Ambient temperature range: ‐40°C to 80°C
Aluminum heavy duty body and cover die‐cromated,
Nettovægt
0.3
Tarifnummer
85365007
Fabrikkens varenummer
SOLDO-SKC4200-20X23L3
